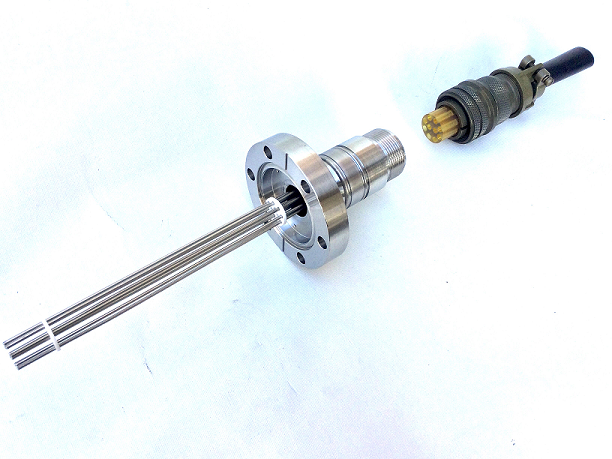

10-PIN FEEDTHROUGH 2.75" O.D.
10-PIN FEEDTHROUGH 2.75" O.D.
  • 2.75" O.D. Mounting
  • 5 keV
  • 10 Amp
  • Pin length 5.5"
  • On the vacuum side, the flange is recessed and has three mounting holes (Thread size 0-80)
  • A fit in collar is available on request

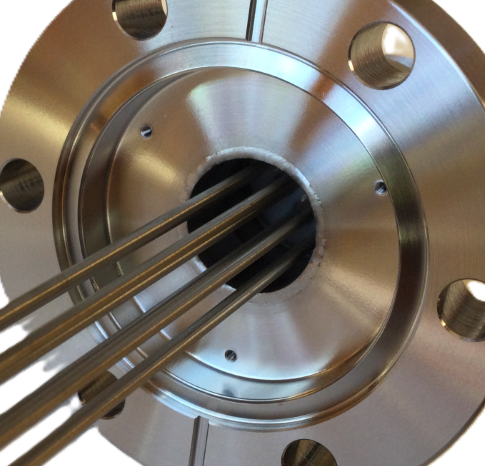

 Vacuum side detail
  • Coodinates are marked on the outside of the flange
 Flange outside detail
Feedthrough P/N 641.264 EUR 570
Connector Assy, 5 keV P/N 641.263 EUR 260
